RTX-CBC Flexible Copper Connections
Flexible copper links accommodate connection geometry between electrical terminals. Braided and laminated constructions require separate drawings, termination details and electrical qualification.
CopperConductor material
BraidedFeatured construction
CustomTerminal geometry
PlatingAvailable options
Przegląd produktów
Flexible copper links accommodate connection geometry between electrical terminals. Braided and laminated constructions require separate drawings, termination details and electrical qualification. Current capability depends on the selected drawing and test conditions. Braided and laminated designs are separate constructions.
Najważniejsze cechy
- Product forms: Braided and laminated copper connections
- Conductor: Copper
- Surface options: Bare, tin, nickel or silver by configuration
- Terminal geometry: Custom dimensions and hole pattern
- Electrical rating: Not established without selected drawing and test conditions
Dostępne modele / konfiguracje
Use these configuration references for enquiry; confirm the exact specification before ordering.
| RITOKS configuration reference | Konfiguracja | Selection notes |
|---|---|---|
| RTX-CBC-B | Braided copper link | Drawing-based selection |
| RTX-CBC-L | Laminated copper link | Separate construction and drawing |
Dane techniczne
| Formy produktu | Braided and laminated copper connections |
|---|---|
| Dyrygent | Copper |
| Surface options | Bare, tin, nickel or silver by configuration |
| Terminal geometry | Custom dimensions and hole pattern |
| Parametry elektryczne | Not established without selected drawing and test conditions |
Zastosowania

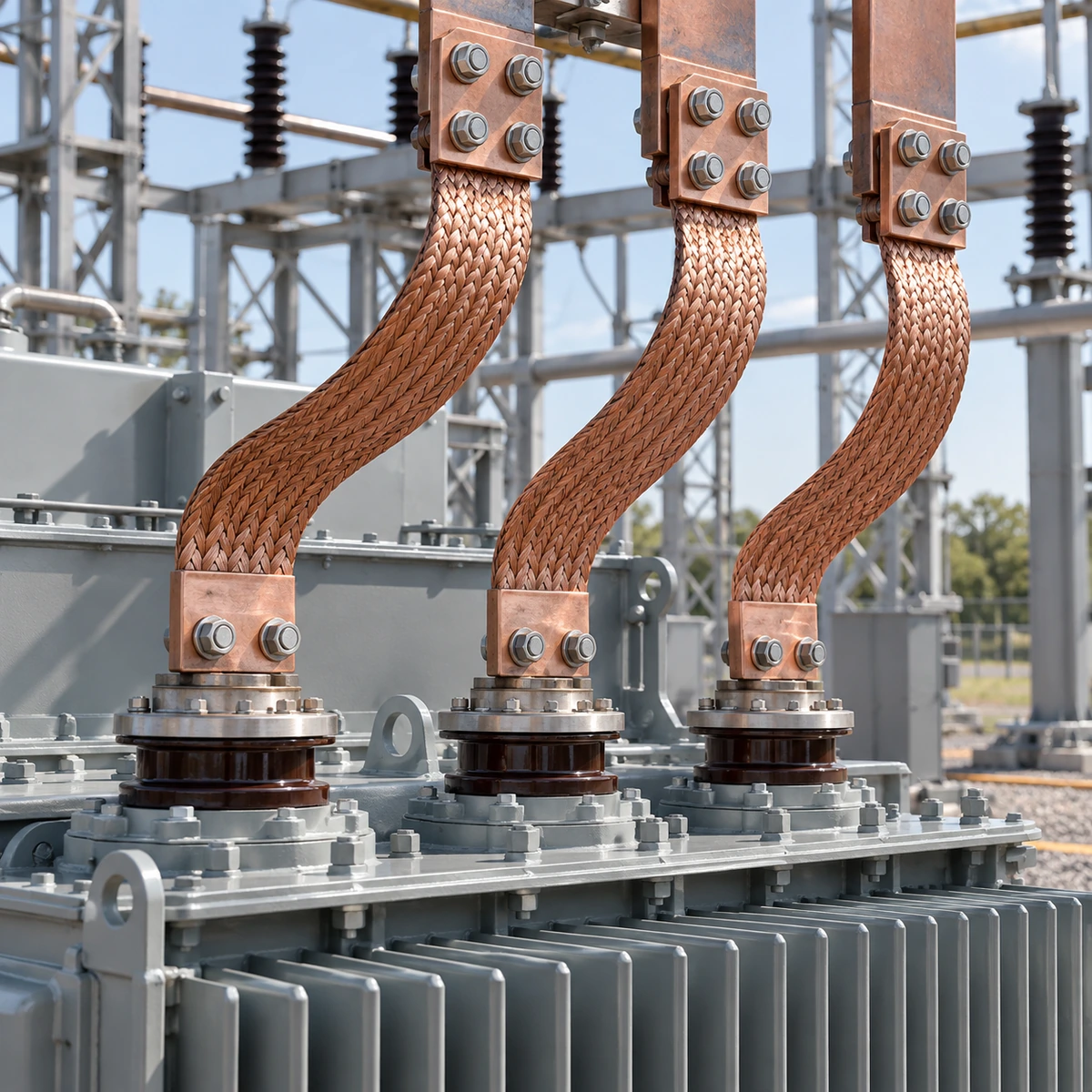

AI-generated conceptual application context, not a photograph of an actual installation. Confirm equipment fit and circuit requirements for the selected configuration.
Transformer Connections
Specify terminal spacing, movement and bolted interfaces.
Switchgear Assemblies
Match connection cross-section and enclosure clearance to the design.
Power Conversion Equipment
Review thermal rise, mechanical movement and surface finish.
Informacje wymagane do potwierdzenia wyboru
- Dimensioned drawing, terminal spacing and required current
- Conductor construction and cross-section
- Hole pattern, surface finish and joint requirements
- Temperature-rise and mechanical test requirements
Najczęściej zadawane pytania
What information is needed for a quotation?
Dimensioned drawing, terminal spacing and required current Please include quantity and destination.
What should be confirmed before selecting a configuration?
Current capability depends on the selected drawing and test conditions. Braided and laminated designs are separate constructions.
Produkty powiązane
Poproś o wycenę
Prosimy o podanie dokładnego modelu, wymaganych parametrów znamionowych, ilości oraz miejsca dostawy. Przed sporządzeniem oferty sprawdzimy dostępność i dokumentację.
Please include: Dimensioned drawing, terminal spacing and required current; Conductor construction and cross-section; Hole pattern, surface finish and joint requirements.
