Slim Relay Interface Bases
Slim screw-terminal bases for removable interface relays. Select the matching relay and input circuit separately; the pictured base is not a complete relay assembly.
สกรูTerminal connection
0.5–2.5 mm²Conductor range
0.8–1.0 NmPublished screw torque
Plug-inRelay interface
ภาพรวมผลิตภัณฑ์
The interface base provides terminal connections and a removable-relay interface for control-panel wiring. The exact relay/base pairing determines the completed assembly. Base-terminal values must not be treated as the switching capability, coil voltage or approvals of an installed relay. Select the matching relay and complete assembly specifications separately.
คุณสมบัติหลัก
- Screw-terminal wiring
- Removable relay interface
- Published conductor and torque guidance
- Separate relay and base selection
- Terminal identification visible on the source image
รุ่น / ตัวเลือกที่มีอยู่
Use these configuration references for enquiry; confirm the exact specification before ordering.
| RITOKS configuration reference | Candidate construction | Assembly boundary |
|---|---|---|
| RTX-SIB-C2 | Slim screw-terminal interface base | Matching relay and input circuitry selected separately |
ข้อมูลทางเทคนิค
| ขอบเขตของผลิตภัณฑ์ | Interface base / socket; complete relay assembly not established |
|---|---|
| การเชื่อมต่อ | Screw terminals |
| Published conductor range | 20–14 AWG / 0.5–2.5 mm² |
| Published screw torque | 0.8–1.0 Nm |
| Base load data | Supplier lists 6 A / 250 VAC; base data only |
| Published temperature range | −35 to +70 °C; base data only |
| Accessory types | Tag board and connecting bar listed; compatibility to confirm |
การใช้งาน

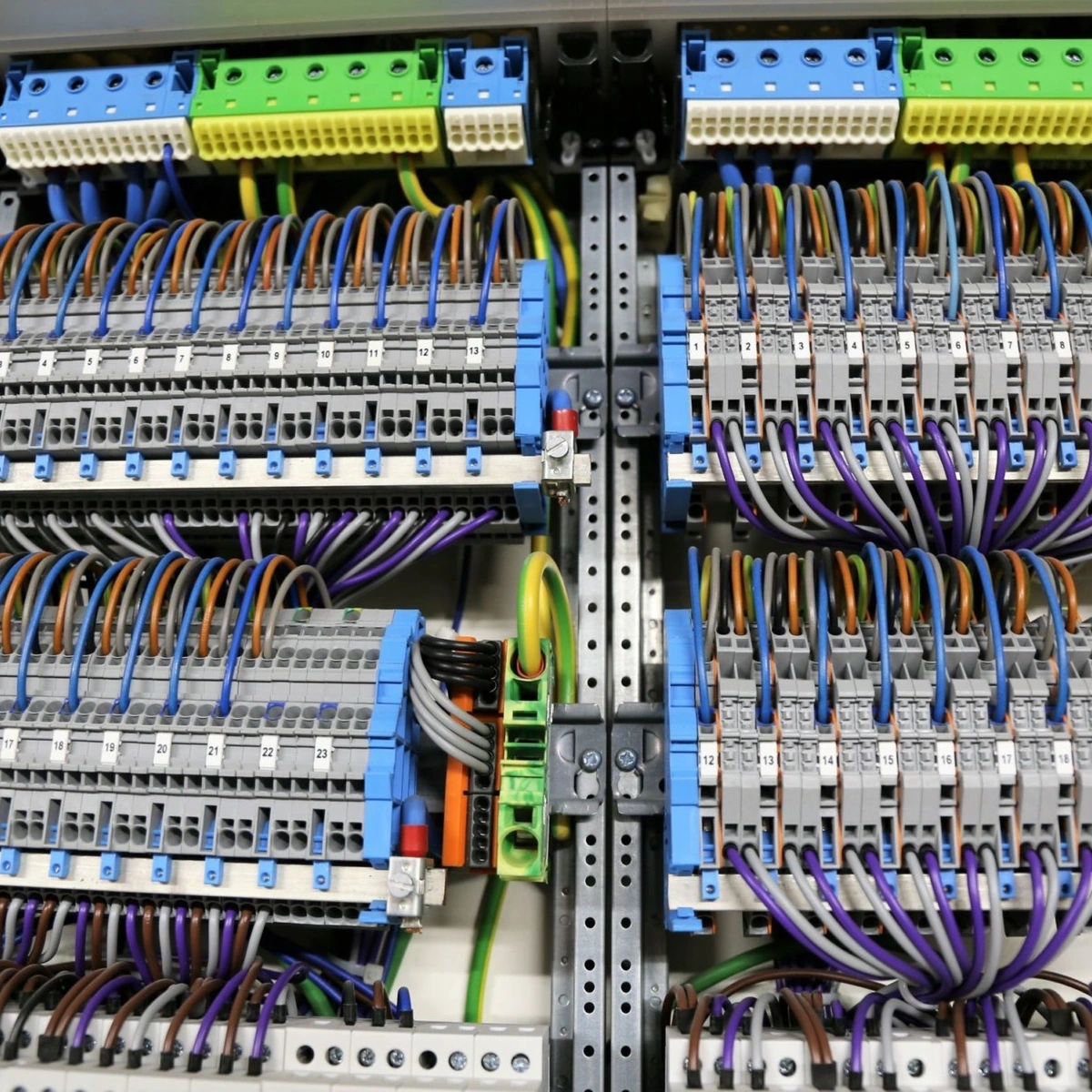

Supporting panel-wiring context, not an exact installation photograph of the offered base.
Panel Interface Wiring
Organize screw-terminal connections around a correctly matched interface relay. Verify pin assignment and the input circuit before completing the assembly.
Serviceable Relay Installations
Use removable relays where maintenance access is required. Replacement relays must match the approved socket, contact arrangement and electrical duty.
Compact Control-Panel Retrofits
Check actual width, rail attachment and wiring clearance against the selected drawing. No universal 6.2 mm width is assumed for this base.
ข้อมูลที่จำเป็นต้องตรวจสอบเพื่อยืนยันการคัดเลือก
- Exact base variant and matching relay part number
- Complete assembly input voltage and input circuitry
- Contact arrangement and load type
- Conductor size, terminal assignment and available panel space
- Accessory compatibility, quantity and destination
คำถามที่พบบ่อย
Is the pictured item a complete relay module?
The supplied photograph shows an interface base. A complete relay assembly is not established by this image.
Can I use the base rating as the relay switching rating?
No. The installed relay has its own contact ratings and load limits. Confirm the complete assembly before selecting a load.
Is the width confirmed as 6.2 mm?
No exact width is specified for this base. Use the selected base drawing, not a generic slim-relay dimension.
ผลิตภัณฑ์ที่เกี่ยวข้อง
ขอใบเสนอราคา
กรุณาส่งข้อมูลรุ่นที่ถูกต้อง, ค่าเรตติ้งที่ต้องการ, จำนวน และจุดหมายปลายทาง เราจะตรวจสอบความพร้อมของสินค้าและเอกสารที่เกี่ยวข้องก่อนที่จะเสนอราคา.
Please include: Exact base variant and matching relay part number; Complete assembly input voltage and input circuitry; Contact arrangement and load type.
