Electrical Measurement & Monitoring · RTX-AIS12

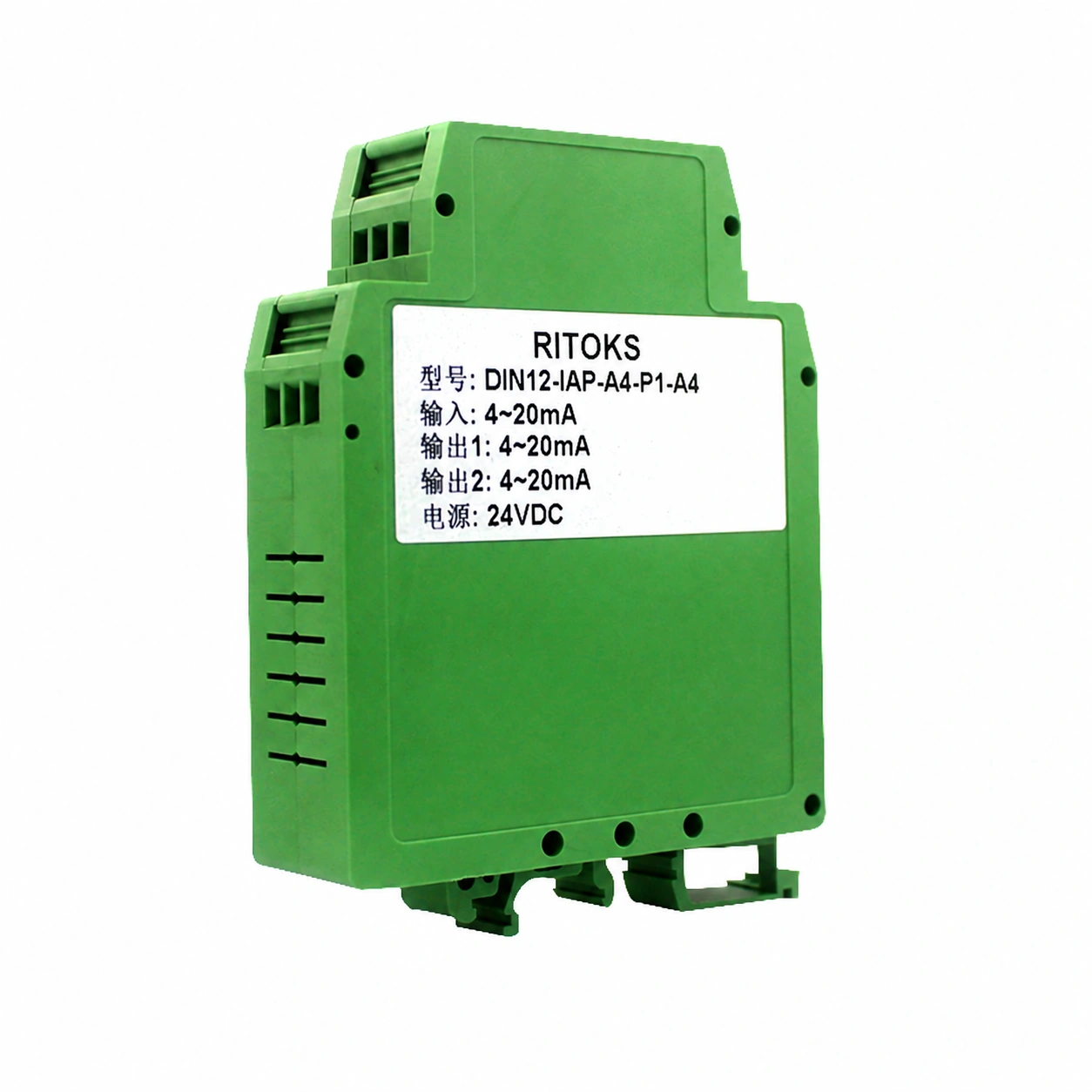

RTX-AIS12 एनालॉग सिग्नल स्प्लिटर्स
One-input, two-output DIN-rail signal modules distribute an analog measurement to separate receiving devices. Select the input, both outputs and DC supply as an exact configuration.
1 → 2Signal channels
डीआईएन रेलस्थापना
4–20 mAAvailable signal option
25 mmआवास की चौड़ाई
उत्पाद अवलोकन
One-input, two-output DIN-rail signal modules distribute an analog measurement to separate receiving devices. Select the input, both outputs and DC supply as an exact configuration. Select the input range, both output ranges and DC supply separately. Isolation-test voltage requires exact-configuration documentation.
मुख्य विशेषताएँ
- Architecture: One analog input and two analog outputs
- Signal options: Current or voltage; exact order code required
- Supply options: 5 / 12 / 15 / 24 V DC by version
- Accuracy options: 0.1 / 0.2 / 0.5 grades by version
- Dimensions: 106.7 × 79 × 25 mm
उपलब्ध मॉडल / विन्यास
Use these configuration references for enquiry; confirm the exact specification before ordering.
| RITOKS configuration reference | संरचना | Selection notes |
|---|---|---|
| RTX-AIS12-I-I | Current input / current outputs | Specify both output channels |
| RTX-AIS12-V-V | Voltage input / voltage outputs | Specify ranges and supply |
तकनीकी विनिर्देश
| वास्तुकला | One analog input and two analog outputs |
|---|---|
| Signal options | Current or voltage; exact order code required |
| Supply options | 5 / 12 / 15 / 24 V DC by version |
| Accuracy options | 0.1 / 0.2 / 0.5 grades by version |
| आयाम | 106.7 × 79 × 25 mm |
आवेदन

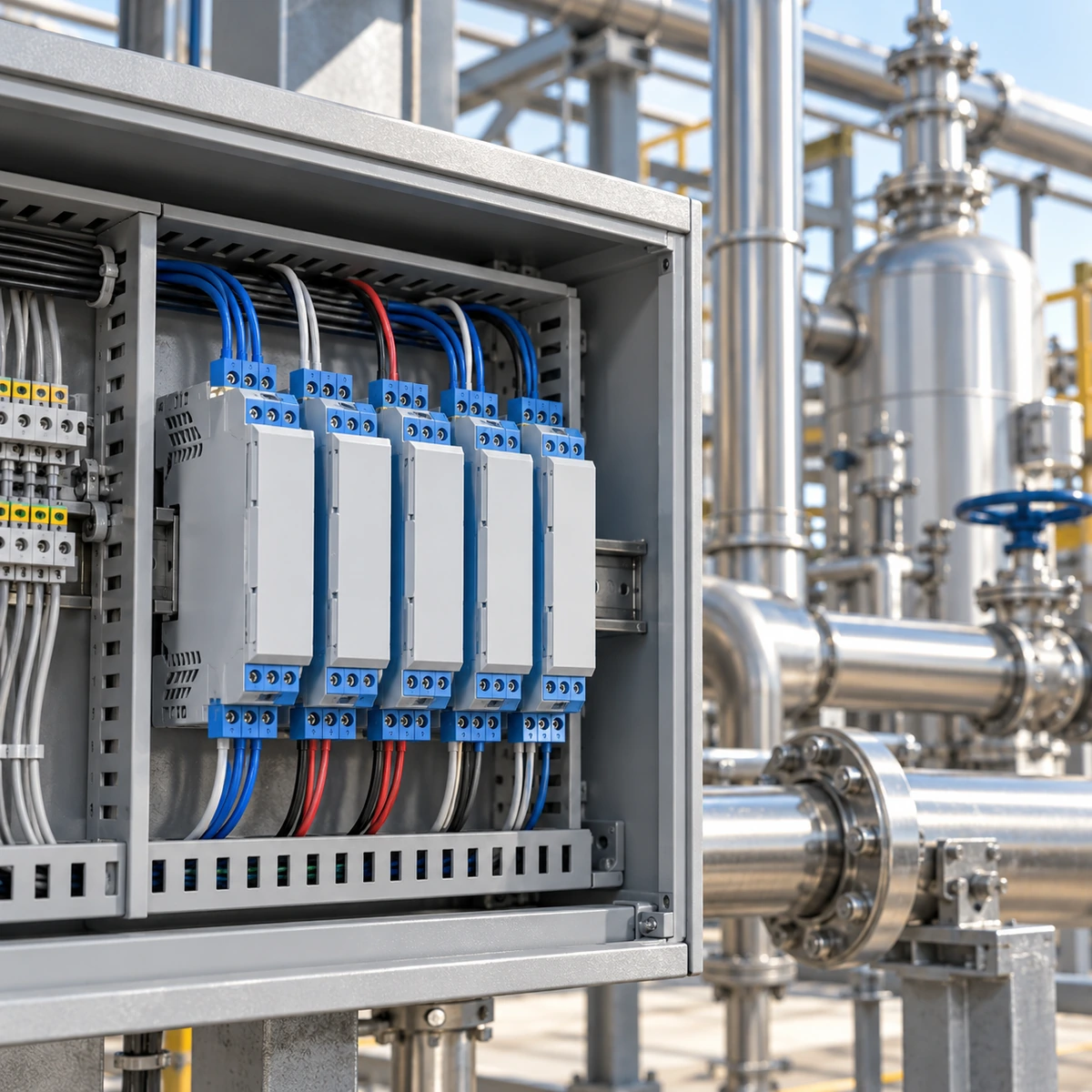

AI-generated conceptual application context, not a photograph of an actual installation. Confirm equipment fit and circuit requirements for the selected configuration.
Process Measurement
Send a compatible transmitter signal to two independent receiving channels.
PLC and Display Integration
Match signal ranges for a controller and a local indicator.
Instrumentation Retrofit
Review grounding, loading and wiring before changing an existing loop.
चयन के लिए पुष्टि हेतु जानकारी
- Input range, two output ranges and supply voltage
- Receiving-device input impedance and loop wiring
- Accuracy grade
- Grounding and required isolation documentation
अक्सर पूछे जाने वाले प्रश्न
What information is needed for a quotation?
Input range, two output ranges and supply voltage Please include quantity and destination.
What should be confirmed before selecting a configuration?
Select the input range, both output ranges and DC supply separately. Isolation-test voltage requires exact-configuration documentation.
संबंधित उत्पाद
कोटेशन का अनुरोध करें
सटीक मॉडल, आवश्यक रेटिंग, मात्रा और गंतव्य भेजें। हम कोटेशन से पहले उपलब्धता और दस्तावेज़ीकरण की पुष्टि करेंगे।.
Please include: Input range, two output ranges and supply voltage; Receiving-device input impedance and loop wiring; Accuracy grade.
