AC Power Protection · RTSXD03

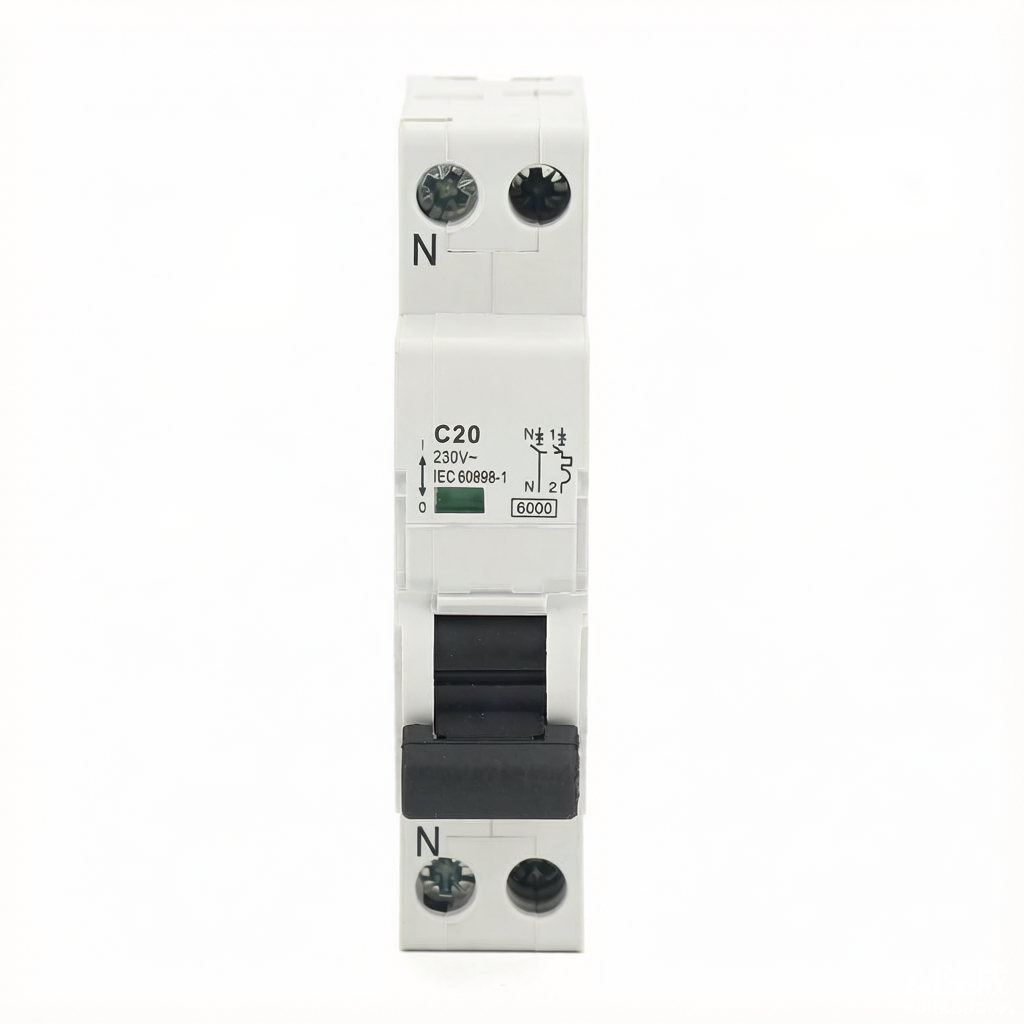

1P+N Economic Miniature Circuit Breaker, 1-32A, 6kA
Cost-effective 1P+N MCB with B/C tripping curves, 6kA breaking capacity, designed for AC 240V residential final circuit protection.
Technical Parameters
| Model Number | RTSXD03 |
| Rated Voltage | AC 240V |
| Rated Current | 1, 2, 3, 4, 6, 10, 16, 20, 25, 32 A |
| Pole Configuration | 1P+N |
| Breaking Capacity | 6kA |
| Mounting Method | 35.5mm DIN Rail / Vertical Mount |
| Dimensions | H1=19mm; H2=22mm (wiring height) |
| Standards | IEC 60898-1 |
Applications
- Residential final circuit
- Lighting
- Socket outlets
FAQ
What is the rated voltage of this MCB?
Rated for AC 240V operation, suitable for standard residential single-phase circuits.
Need Help Confirming a Model?
Send the required ratings, model reference, quantity and destination country. We will confirm compatibility and availability before quotation.
