PV DC Isolator Switches · RTS-PVIS63-1000
2P/4P DC PV Isolator Switch, 32-63A, 600-1000V

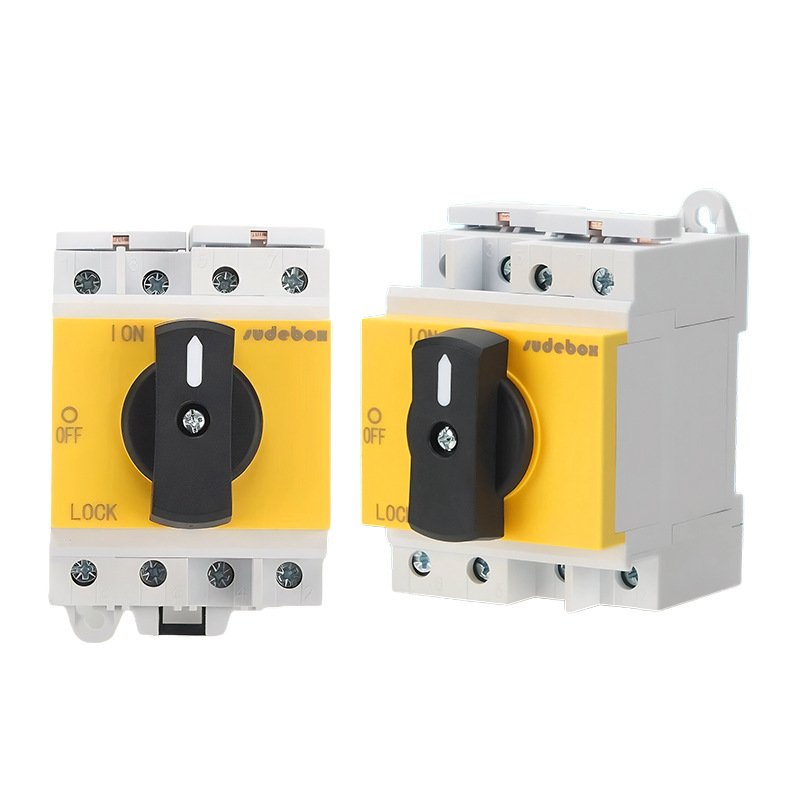

Compact rotary photovoltaic DC isolator switch family for panel and equipment integration, available in 2P 32A DC600V and 4P 32A or 63A DC1000V configurations.
- 2P and 4P configurations for 600V and 1000V DC circuits
- 32A and 63A listed thermal-current options
- Yellow and white handle/front-panel options
Technical Parameters
| Model Family | RTS-PVIS63-1000 |
| Product Type | Panel-Mount Photovoltaic DC Isolator Switch |
| Rated Voltage | DC600V / DC1000V |
| Listed Thermal Current | 32A / 63A |
| Pole Configuration | 2P / 4P |
| Protection Rating | IP65, supplier listed; installed-condition scope pending verification |
| Housing Material | ABS |
| Contact Material | Copper with nickel plating |
| Wiring Direction | Top entry / bottom exit |
| Mechanical Life | 10,000 operations |
| Special Function | Anti-misoperation switching design |
| Utilization Category / Certification | Pending verified datasheet and test report |
Available Configurations
| Ritoks Model | Voltage | Poles | Current | Color |
|---|---|---|---|---|
| RTS-PVIS32-600-2P-Y | DC600V | 2P | 32A | Yellow |
| RTS-PVIS32-600-2P-W | DC600V | 2P | 32A | White |
| RTS-PVIS32-1000-4P-Y | DC1000V | 4P | 32A | Yellow |
| RTS-PVIS32-1000-4P-W | DC1000V | 4P | 32A | White |
| RTS-PVIS63-1000-4P-Y | DC1000V | 4P | 63A | Yellow |
| RTS-PVIS63-1000-4P-W | DC1000V | 4P | 63A | White |
Confirm the rated operational current under the required DC voltage, pole-series wiring and utilization category before ordering.
Applications
- Photovoltaic inverter DC input isolation
- Solar combiner boxes and distribution panels
- PV equipment control cabinets
- Maintenance isolation for compact DC systems
FAQ
Can the 2P and 4P versions use the same wiring arrangement?
No. The required pole-series connection depends on the system voltage and switch configuration. Confirm the wiring diagram for the selected SKU before installation.
Does 63A apply at every voltage and wiring configuration?
The supplied list shows 63A only for the 4P DC1000V version. Final rated operational current and utilization category require confirmation from the verified technical document.
Need Help Selecting a PV Isolator?
Send the system voltage, current, circuit diagram, required poles, color, quantity and destination country. We will confirm the suitable configuration before quotation.
