Enclosure Climate Controls · RTX-PCV-M
RTX-PCV-M Membrane Pressure Compensation Devices
Membrane pressure compensation devices are available in M40 and M12 mounting configurations. Choose the exact size and installation requirements for the enclosure; the hero represents the M40-style candidate.
M40 / M12Separate sizes
MembranePressure compensation
NBRSeal material
ThreadedMounting
Product Overview
Membrane pressure compensation devices are available in M40 and M12 mounting configurations. Choose the exact size and installation requirements for the enclosure; the hero represents the M40-style candidate. M40 and M12 are separate sizes. Confirm exact-variant protection and airflow documentation before selecting a device.
Key Features
- M40 thread: M40 × 1.5
- M40 dimensions: Ø60 × 37 mm
- M40 mounting depth: 16 mm
- M40 torque: 5 Nm
- M12 dimensions: Ø17 × 17.5 mm
Available Models / Configurations
Use these configuration references for enquiry; confirm the exact specification before ordering.
| RITOKS configuration reference | Configuration | Selection notes |
|---|---|---|
| RTX-PCV40-M | M40 × 1.5 / Ø60 × 37 mm | 5 Nm installation torque |
| RTX-PCV12-M | M12 / Ø17 × 17.5 mm | 0.5 Nm installation torque |
Technical Specifications
| M40 thread | M40 × 1.5 |
|---|---|
| M40 dimensions | Ø60 × 37 mm |
| M40 mounting depth | 16 mm |
| M40 torque | 5 Nm |
| M12 dimensions | Ø17 × 17.5 mm |
| M12 mounting depth | 8 mm |
| M12 torque | 0.5 Nm |
| Seal | NBR with waterproof membrane |
Applications

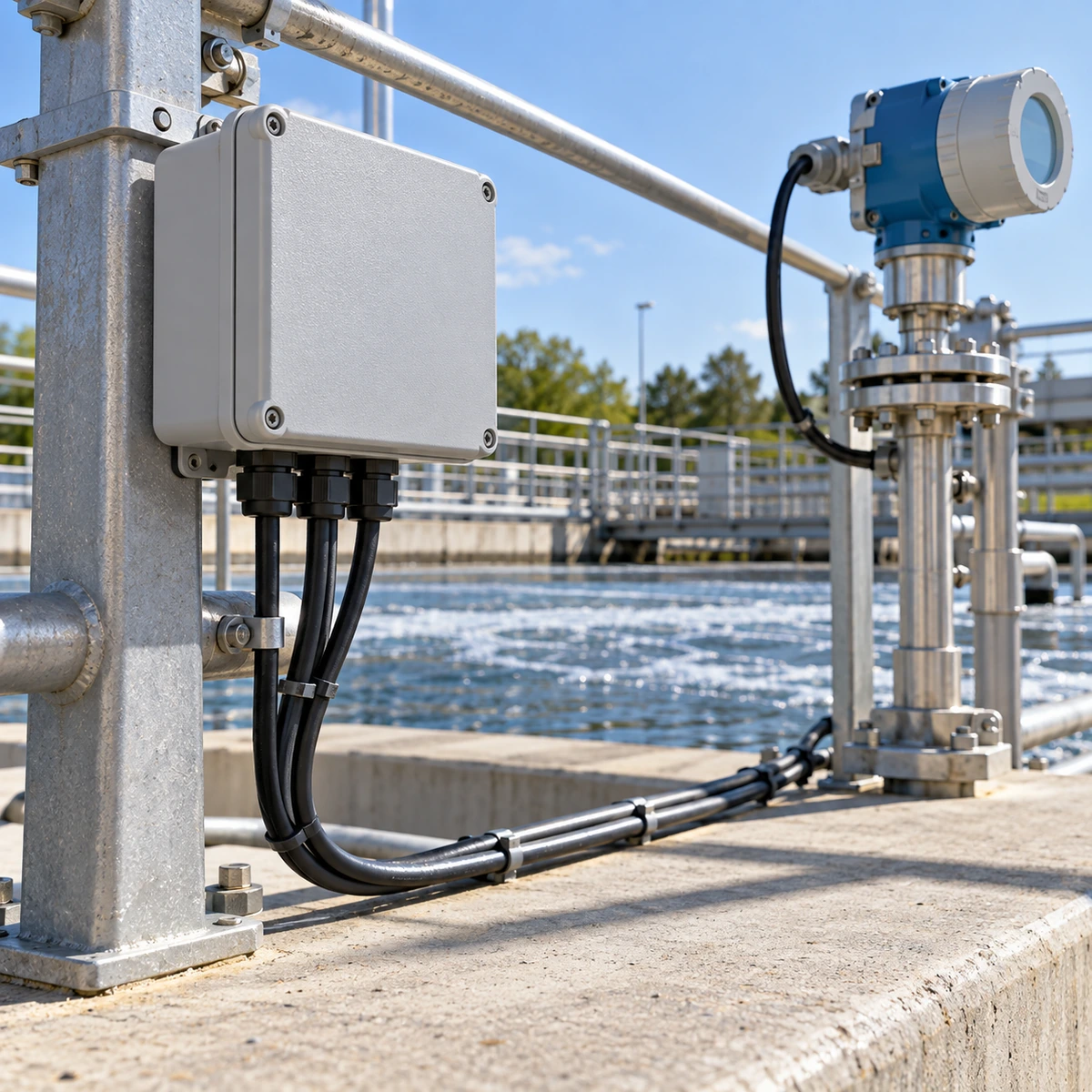

AI-generated conceptual application context, not a photograph of an actual installation. Confirm equipment fit and circuit requirements for the selected configuration.
Outdoor Instrumentation
Review pressure equalization for compact field enclosures.
Water Treatment Panels
Confirm compatibility with humidity and exposure conditions.
Sensor Junction Boxes
Select thread size and mounting depth for the enclosure wall.
Information to Confirm for Selection
- Required size, enclosure wall and installation clearance
- Pressure-equalization requirement and exposure conditions
- Exact-variant protection and temperature documents
- Quantity and mounting arrangement
FAQ
What information is needed for a quotation?
Required size, enclosure wall and installation clearance Please include quantity and destination.
What should be confirmed before selecting a configuration?
M40 and M12 are separate sizes. Confirm exact-variant protection and airflow documentation before selecting a device.
