AC Power Protection · RTSXD04

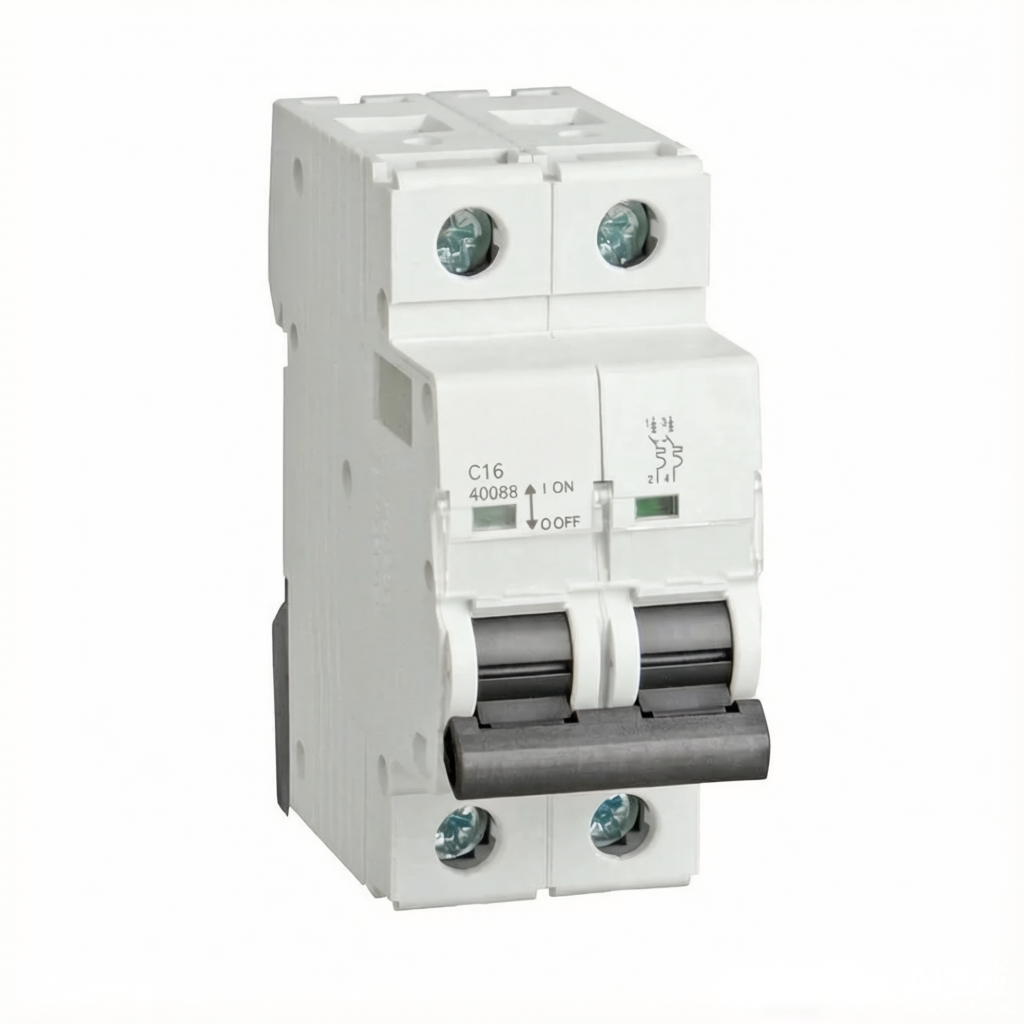

10kA Pro Series Miniature Circuit Breaker, 1-63A
Pro-series multi-pole MCB with B/C/D tripping curves, 10kA breaking capacity, supports auxiliary contact and shunt release accessories.
Technical Parameters
| Model Number | RTSXD04 |
| Rated Voltage | AC 230/400V |
| Rated Current | 1, 2, 3, 4, 6, 10, 13, 16, 20, 25, 32, 40, 50, 63 A |
| Pole Configuration | 1P+N, 2P, 3P, 3P+N, 4P |
| Breaking Capacity | 10kA (Icn) / 7.5kA (Ics) |
| Mounting Method | 35.5mm DIN Rail / Panel Mount |
| Standards | IEC 60898-1; IEC 60947-2 |
Applications
- Residential
- Commercial
- Industrial distribution
FAQ
What accessories are supported?
Supports F3 auxiliary contact and S3 shunt release for remote control and status indication.
Need Help Confirming a Model?
Send the required ratings, model reference, quantity and destination country. We will confirm compatibility and availability before quotation.
